How to Measure for Replacement Handleset Correctly
A handleset can look like a simple swap until the new trim arrives and the mounting holes do not line up, the grip sits too high, or the deadbolt lands in the wrong place. If you need to measure for replacement handleset correctly, the goal is not just getting the style you want - it is making sure the new set matches your door prep, thickness, and function before you order.
What matters when you measure for replacement handleset correctly
Most replacement problems come down to one issue: people measure the visible hardware, not the door itself. The existing trim may cover old holes, use a special mounting plate, or include decorative escutcheons that make the door prep look different than it actually is.
For a correct fit, focus on the door and the prep behind the hardware. In most cases, you will need the center-to-center measurement between the deadbolt and lower bore, the backset, the bore hole sizes, the crossbore and edge bore layout, the door thickness, and whether the door is left-hand or right-hand. If your current handleset is part of a taller sectional design or uses a connected escutcheon, those details matter too.
It helps to remove the interior trim before measuring. That extra few minutes can prevent a costly guess.
Start with the door prep, not the trim

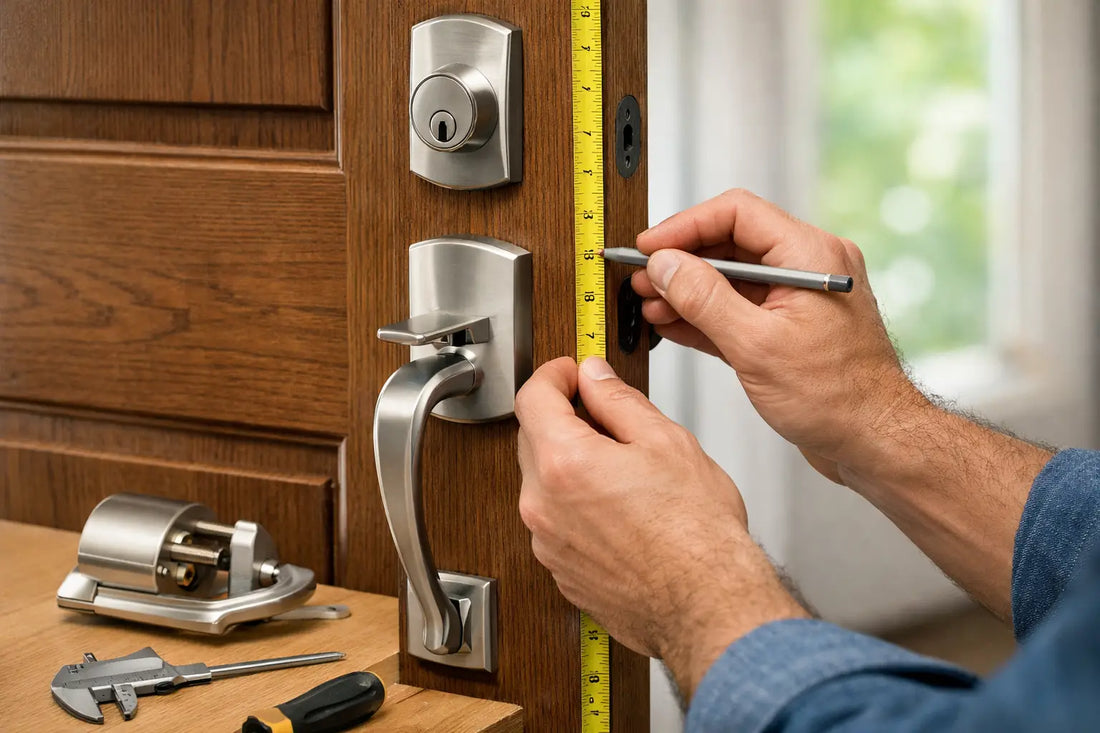

The first measurement most buyers need is the center-to-center distance. This is the vertical measurement from the center of the deadbolt bore to the center of the lower knob, lever, or handleset bore. On many standard tubular handlesets, this is 5-1/2 inches, but not always. Some brands and older doors use different spacing, and multipoint or specialty entry systems may not follow standard tubular prep at all.
Measure from the exact center of the upper hole to the exact center of the lower hole. Do not measure from edge to edge of trim plates or from the top of one visible opening to the bottom of another. The center point is what determines compatibility.
Next, measure the diameter of each bore hole. Standard tubular lock prep often uses a 2-1/8 inch bore for both deadbolt and lower latch, but some older doors may have smaller bores or unusual prep. Also check the latch bore on the door edge. That opening is commonly 1 inch, though some hardware may vary.
If the replacement handleset requires concealed mounting or a specific chassis, the manufacturer may also call for exact through-bolt spacing. That is especially common with some premium and designer brands.
Measure the backset carefully
Backset is one of the most common reasons replacement hardware does not fit. This measurement runs from the edge of the door to the center of the bore hole. Standard residential backsets are usually 2-3/8 inches or 2-3/4 inches.
Measure each bore separately. On many doors, the deadbolt and lower latch share the same backset, but not always. If the door was modified in the past or drilled by hand, the upper and lower holes may not be perfectly aligned.
Many latch mechanisms are adjustable for either standard backset, but the trim and interior chassis still need to work with the actual prep. If the product you are considering is not adjustable, this measurement becomes non-negotiable.
Check door thickness before you order
A premium handleset is only a good fit if it can clamp securely to the door. Standard residential entry doors are often 1-3/4 inches thick, but older wood doors, decorative fiberglass doors, and some specialty exterior doors may be thicker or thinner.
Measure the slab itself, not the weatherstripping or any raised panel detail. If your door is thicker than standard, you may need a thick door kit, longer mounting hardware, or a model specifically rated for thicker applications. This matters more often than buyers expect, especially in higher-end remodels and custom homes.
If your current hardware barely catches on the interior screws or feels compressed against the trim, thickness may already be part of the problem.
Look at the style of the existing handleset
Not every handleset replaces the same way. Some are sectional, with a separate deadbolt above and a lower grip below. Others are connected, with one long exterior escutcheon tying the lock and handle together. Some use grip by grip mounting patterns that are brand-specific.
This is where measuring the visible exterior length and screw placement can help, but only after the basic door prep is confirmed. If you are replacing a connected handleset with another connected model, compare the overall plate height and any exposed screw locations. A new plate may leave old holes visible, or it may not cover a faded outline in the finish.
For sectional replacements, flexibility is usually better because separate pieces can cover prep more easily. If your priority is avoiding refinishing or patching the door, pay attention to how much area the new trim will cover.
Handing matters more than many buyers expect
If the handleset includes a lever on the interior, handing can be important. Even when the exterior grip is non-turning, the interior trim may be left-hand or right-hand specific depending on the design.
To determine handing, stand outside the home facing the door. If the hinges are on the left, it is a left-hand door. If the hinges are on the right, it is a right-hand door. Some product descriptions use handing language differently for inswing and outswing applications, so it is worth confirming the manufacturer’s standard before ordering.
Knob-style interiors are often more forgiving. Lever interiors and electronic trim usually require closer attention.
Do not ignore the latch and strike details
A replacement handleset is not just decorative trim. The latch and deadbolt need to align with the existing strike prep in the jamb. If the new deadbolt throw, latch style, or strike plate dimensions vary, installation may still require minor adjustment even when the bore holes are correct.
For many homeowners and remodelers, that is manageable. For prefinished entry doors, expensive stain-grade slabs, or occupied multifamily units, avoiding extra drilling or chiseling can matter a lot. That is why specification-driven shopping tends to save time.
Also check whether your current door uses a standard tubular latch or a mortise lock. A mortise entry set is a completely different prep and cannot be replaced with a standard tubular handleset without major door modification.
When the old hardware is covering surprises
One of the trickiest replacement scenarios is an older entry door with oversized plates. Once the old set comes off, you may find extra holes, patched areas, a nonstandard center-to-center measurement, or a lower bore that is slightly off level from the deadbolt above.
If you are working with an older home, it is smart to measure with the hardware removed rather than relying on catalog assumptions. That is especially true if the current set was installed years ago by a previous owner or if the door has been repainted multiple times.
Photos can help, but numbers matter more. A clean product match starts with exact dimensions.
A practical way to measure a replacement handleset correctly
If you want the shortest path to a confident order, use this sequence. Open the door and measure the slab thickness first. Then measure the backset from the edge of the door to the center of each bore. Measure the bore diameters. Measure the center-to-center spacing between upper and lower bores. Check the edge bore on the latch side. Then confirm handing and note whether the current set is sectional, connected, tubular, or mortise.
If there are through-bolts, hidden adapters, or decorative plates, note those too. For higher-end brands, these details often separate a drop-in replacement from a partial rework.
This is also the point where a fitment-focused retailer like RightSet Hardware can make the process easier. When product pages and support teams are built around prep compatibility instead of just finish and style, it is much easier to order with confidence.
When replacement is simple, and when it is not
If your door has standard 2-1/8 inch bores, a standard backset, 5-1/2 inch center-to-center spacing, and a 1-3/4 inch thick slab, your replacement options are usually broad. That is the straightforward scenario most buyers hope for.
If your door is thicker than standard, uses older prep, has a connected escutcheon with unusual mounting, or includes a mortise body, options narrow quickly. That does not mean you are stuck. It just means style selection needs to follow fitment, not the other way around.
That trade-off is worth accepting. A handleset that suits the architecture and finish of the home only works if it installs properly, secures the door, and covers the existing prep cleanly.
Take the extra time to measure the door, not the guess in your head. A good-looking entry starts with a correct fit, and the right measurements are what get you there.
