How to Select Mortise Lock Trim That Fits
A mortise lock can remain perfectly serviceable while its trim looks dated, feels loose, or no longer suits the door. The catch is that trim is not a universal cover plate. Knowing how to select mortise lock trim starts with the lock body and door preparation already in place, then moves to function, handing, dimensions, and finish. Get those details right before ordering, and a replacement becomes a straightforward upgrade instead of a return or a door-repair project.
Start With the Mortise Lock Body, Not the Trim
The mortise lock body is the rectangular case recessed into the edge of the door. It controls whether a trim set will work. Even two trim sets that appear nearly identical can have different spindle locations, cylinder positions, screw-post spacing, or hub arrangements.
If you are replacing trim on an existing door, remove the interior escutcheon or rose first. Photograph the lock case, the door edge, and both faces of the door. Look for a brand name, part number, or markings on the lock faceplate. This is especially useful with older hardware, where a current trim collection may not match a discontinued lock body without an adapter or a replacement case.
Do not assume a trim set fits simply because it is described as mortise trim. Product descriptions may distinguish among specific lock series, functions, and door preparations. A trim set designed for one manufacturer’s mortise case may not operate another manufacturer’s case, even when the lever style and finish are a close visual match.
Identify What the Lock Does
Before choosing an escutcheon, identify the lock function. On a residence, that may be an entry lock with a keyed cylinder outside and a thumbturn inside, a privacy lock for a bedroom or bathroom, or a passage function without a key cylinder. Commercial doors may use classroom, storeroom, office, apartment, or institutional functions.
Function affects the trim configuration. A keyed entry trim needs the correct cylinder opening and internal clearance. A privacy trim needs a thumbturn or emergency-release arrangement that matches the lock. Lever trim for a storeroom lock may require an outside lever that stays rigid while the inside lever retracts the latch. These differences are mechanical, not cosmetic.
If the door is part of a commercial opening, verify that the intended hardware supports the required egress behavior. Hardware on the exit side of an egress door must allow occupants to leave without special knowledge, tools, or keys. Decorative preference should never override code requirements or the approved door-hardware schedule.
Measure the Door Prep Before Selecting Mortise Lock Trim
A few measurements eliminate most compatibility mistakes. Measure with the existing trim removed whenever possible. Old escutcheons can conceal drilled holes, previous screw locations, and the true relationship between the handle and key cylinder.
Record these details before comparing products:
- Door thickness, including any applied molding or decorative panels that affect trim clearance
- Backset, measured from the door edge to the centerline of the spindle or key cylinder as applicable
- Distance between the spindle hub and the cylinder centerline
- Screw-post or through-bolt locations and spacing
- Faceplate length, width, and screw-hole placement on the door edge
- Handing of the door and the swing direction
Backset also matters, but it is only one part of the fit. Many buyers correctly identify a 2-1/2-inch or 2-3/4-inch backset and stop there. The trim still has to align with the spindle, cylinder, and mounting points used by that specific lock body.
Check Cylinder Type and Tailpiece Compatibility
For keyed mortise locks, the cylinder is often purchased separately from the trim. Confirm whether the lock takes a standard mortise cylinder, what cylinder length is required, and whether the trim calls for a particular collar or ring. The cylinder must sit at the correct depth: too short and it may not engage; too long and it can project beyond the escutcheon or interfere with operation.
Tailpiece compatibility is just as significant. Mortise cylinders use tailpieces to operate the lock mechanism, and tailpiece style or length can vary by lock family. Reusing an existing cylinder may be possible, but only if its length, cam, tailpiece, keying, and finish work with the new trim and lock case.
Match Handing and Lever Operation
Handing is easy to overlook because many trim styles look symmetrical in product photos. A lever may be left-hand, right-hand, reversible, or non-handed. The correct orientation depends on whether the door is left-hand or right-hand and whether it swings in or out.
When standing on the outside of a residential entry door, or the secure side of a commercial door, determine which side the hinges are on. That establishes the hand. However, manufacturers do not all describe handing in precisely the same way, so use the manufacturer’s handing diagram rather than relying only on a verbal label.
Reversible levers can simplify ordering, but they are not always the answer. Some architectural escutcheons, thumbturn layouts, and specialty functions are handed. On commercial openings, handed trim may be necessary to preserve proper lever return, latch retraction, or accessibility performance.
Choose an Escutcheon Style That Fits the Door

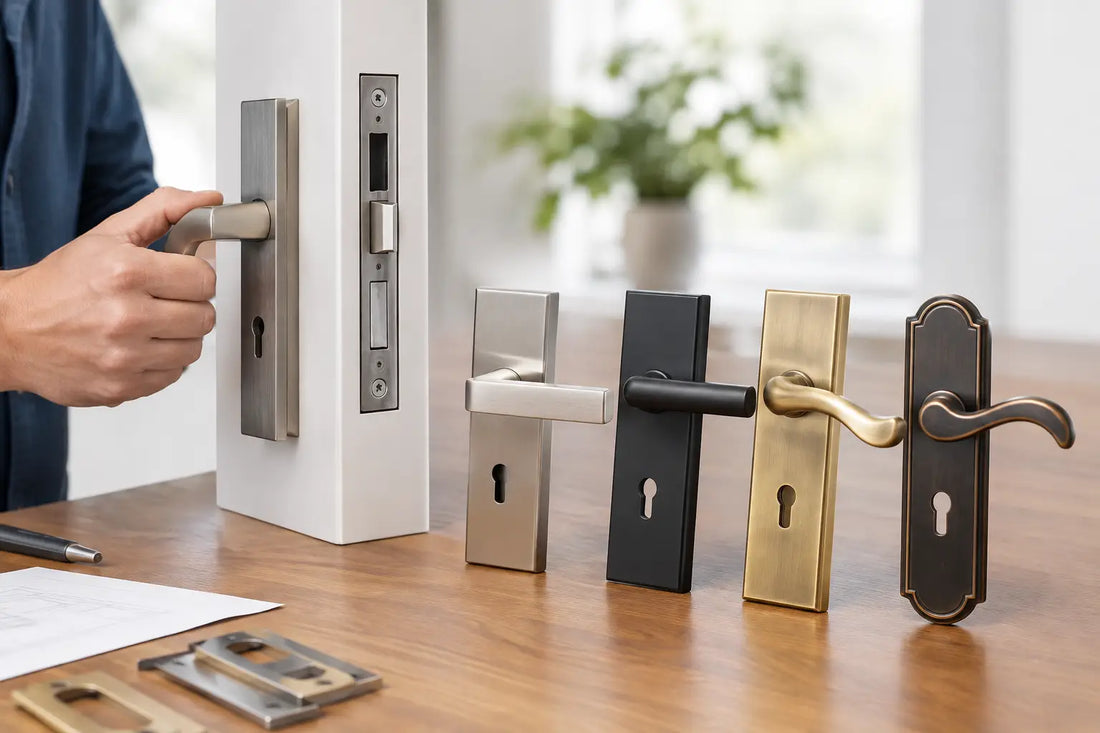

Once the mechanical requirements are confirmed, select the trim profile. Mortise lock trim generally comes in two approaches: a long escutcheon that combines the lever, cylinder opening, and sometimes thumbturn in one plate, or separate roses and cylinder trims.
Long escutcheons create a more formal, integrated appearance and can cover old bore holes or finish shadows left by previous hardware. They are often a practical choice for replacement work on older doors. The trade-off is that their length and screw locations must align with the door prep, and a new plate may reveal unprotected areas around old hardware if the footprint is smaller.
Rose trim gives a cleaner, more tailored look and works well when the door has fresh, accurately planned preparation. It offers flexibility in the spacing of the lever and cylinder, but it does not hide old holes or surface marks as easily. On painted doors this may be manageable; on stained wood, matching the exposed area can be more difficult.
Consider the scale of the door as well. A tall front door, wide stile, or substantial raised panel can support a larger escutcheon. A narrow interior stile may look crowded with oversized trim. For a multi-door project, compare the trim against hinges, house numbers, cabinet hardware, and existing lighting so the finish and proportions feel intentional rather than merely similar.
Select a Finish for Both Appearance and Use
Finish is where many hardware decisions become visual, but durability and maintenance belong in the decision too. Satin nickel and polished nickel are different looks. Oil-rubbed bronze, matte black, polished brass, and satin brass can vary noticeably among manufacturers, even when the finish name is the same.
For exterior or high-touch doors, consider how the finish will wear. Living finishes are designed to change over time and develop variation with handling and exposure. Protective finishes are more consistent, although they can still show fingerprints, water spots, or scratches depending on color and sheen. A dark matte finish may hide small surface marks well but show dust; polished finishes reflect light beautifully but may need more frequent cleaning.
If you are matching existing hardware, compare actual finish samples or product swatches where possible. Screen images are useful for narrowing options, not for confirming an exact match. It is often better to coordinate undertones and sheen than to chase a name that sounds identical.
Confirm the Order Details Before Purchase
The final check should bring all specifications into one view: lock brand or series, lock function, door thickness, backset, handing, trim style, cylinder requirements, finish, and any thick-door or mounting hardware needed. If the lock body is unknown or the door prep is unusual, pause before ordering.
Clear photos and measurements can resolve questions that a product title cannot. RightSet Hardware can help review fitment details so you can move forward with confidence rather than guessing from appearance alone.
A well-chosen mortise trim set should feel natural every time the door is used. Take the extra few minutes to verify the mechanical details first, then choose the profile and finish that make the door look like it was specified that way from the start.
