How to Measure Door Bore Hole Correctly

A replacement lockset should not turn into a patch-and-pray project. If you are ordering a new knob, lever, deadbolt, or handleset, knowing how to measure door bore hole dimensions first is what keeps the job straightforward and the fit correct.

Most residential doors follow common prep standards, but not all of them. Older doors, custom wood doors, oversized cross bores, and commercial openings can all vary enough to cause trouble if you assume the hardware is universal. A few careful measurements now can save you from ordering the wrong trim, latch, or deadbolt later.

What the door bore hole actually includes

When people say "door bore hole," they are usually talking about the large round opening drilled through the face of the door for a knob, lever, or deadbolt. In hardware terms, that opening is often called the cross bore.

There is also a smaller hole drilled into the edge of the door where the latch or bolt slides in and out. That opening is called the edge bore. Both matter when selecting hardware, but the cross bore is usually the first dimension to confirm.

If you are replacing an existing lock, you will usually want to measure three things together: the cross bore diameter, the backset, and the edge bore diameter. If you skip one of those, you can still end up with a product that technically matches the door bore but does not install correctly.

Tools to use when measuring

A tape measure works, but a ruler or caliper gives you a cleaner reading on round holes. If the lock is still installed, a screwdriver will help you remove the interior and exterior trim so you can measure the bare door prep instead of guessing around the hardware.

Good lighting helps more than most people expect. Old paint, decorative roses, and worn edge prep can hide the actual opening size, especially on older doors that have been refinished more than once.

How to measure door bore hole size

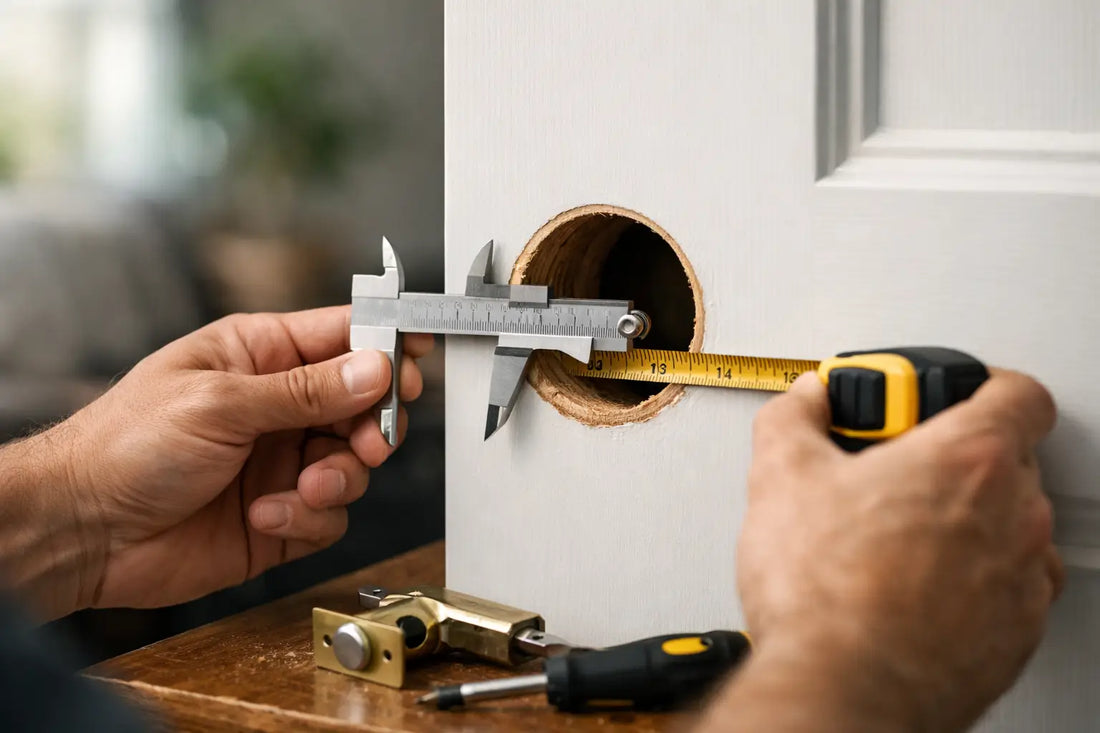

Start with the large hole through the face of the door. Measure straight across the widest part of the opening from one inside edge to the opposite inside edge. Do not include any trim plate, decorative rose, or latch hardware in that measurement.

For most modern residential locksets and deadbolts, the standard cross bore is 2-1/8 inches. That is the measurement you will see most often on pre-bored doors and on replacement hardware specifications.

In some cases, especially on older interior doors or certain specialty locksets, you may find a 1-1/2 inch bore instead. That smaller prep is less common today, but it still appears often enough that it is worth checking before you order anything.

If your reading is close but not exact, clean up the edges mentally and measure the actual drilled opening, not chipped paint or splintered wood fibers. A worn 2-1/8 inch hole may not look perfectly round anymore, but the intended prep is usually still clear once the trim is removed.

Common cross bore sizes

The two measurements you will run into most often are 2-1/8 inches and 1-1/2 inches. For many current residential knobs, levers, and deadbolts, 2-1/8 inches is the expected standard.

That said, product compatibility depends on more than the hole diameter alone. Some hardware can adapt to multiple bore sizes. Some cannot. Premium decorative hardware, mortise trim, and certain smart locks can be less forgiving than basic tubular locksets.

Measure the backset before you buy

Backset is the distance from the edge of the door to the center of the cross bore. This dimension is just as important as bore diameter because it tells you where the latch sits within the door.

To measure it, place your tape measure or ruler at the door edge and measure to the center of the large face bore. Standard residential backsets are usually 2-3/8 inches or 2-3/4 inches.

Many tubular latch locksets are adjustable for either backset. Some are not. If you are buying a deadbolt, entry set, or a trim package where alignment matters visually, it is best to verify the exact backset rather than assume the latch can adjust.

Why backset matters for fit and function

A mismatch here can create two different problems. The first is simple installation trouble - the latch may not reach or align with the existing prep. The second is appearance. On narrower stiles or decorative doors, the wrong backset can crowd glass, panel profiles, or edge detailing.

That is one reason specification-driven hardware shopping matters. Two locksets can look nearly identical online but require different prep conditions at the door.

Check the edge bore too

The edge bore is the smaller round hole drilled into the edge of the door where the latch body goes. To measure it, remove the latch if possible and measure the diameter of that opening.

A common edge bore size is 1 inch. Some doors and lock types vary, particularly with older hardware, commercial doors, or specialized latch mechanisms.

If you are replacing standard tubular hardware with standard tubular hardware, the edge bore is often straightforward. If you are converting functions, changing brands, or moving into a smart lock or interconnected set, it becomes more important to confirm every prep dimension.

Don’t forget door thickness

You can measure the bore hole perfectly and still end up with the wrong hardware if the door thickness is outside the product’s range. Measure the thickness from one face of the door to the other, usually at the edge.

Standard residential interior and exterior doors are often 1-3/8 inches or 1-3/4 inches thick. Thicker doors are common on custom homes and some exterior applications. Many premium locksets offer thick door kits, but not all do, and the compatible range varies by brand and function.

This is especially relevant when ordering decorative hardware, keyed entry sets, and electronic locks. Trim screws, spindle length, tailpieces, and cylinder engagement all depend on the door thickness being within spec.

Measuring an empty door vs. an installed lock

If the door is already stripped and ready for new hardware, measuring is easier because you can see the prep directly. If the old lock is still installed, remove it before making a final decision.

Trying to measure around a rose or escutcheon can hide whether the bore was oversized, modified, or repaired. That matters most on remodel work, where the visible trim may have been covering a non-standard prep for years.

If you are working on a new slab, measure the manufacturer’s prep directly and compare it against the hardware specifications. If you are working on an existing opening, trust the actual door in front of you more than what you think was installed before.

What can change on older or custom doors

Older homes often introduce the kind of variation that causes ordering mistakes. A hole may have been enlarged for a previous lock. The door edge may have been patched and re-drilled. A decorative entry set may have used a prep pattern that does not match a standard tubular replacement.

Custom doors can add another layer. Wide stiles, narrow stiles, thicker slabs, and specialty materials all affect what will fit cleanly. In commercial settings, door prep can differ again depending on whether the opening is wood, hollow metal, or aluminum storefront.

This is where "standard" becomes conditional. Many products are built around standard residential prep, but the minute the opening falls outside that norm, the product selection narrows.

When the measurement means you need more than a new lock

Sometimes the right answer is not just choosing different hardware. If the bore is too small, too large, off-center, or badly damaged, the door may need modification or repair before the new hardware can be installed properly.

A smaller mismatch can sometimes be solved with adapter plates or compatible trim. A more significant mismatch may require re-boring the door, filling an old prep, or changing hardware type altogether. That is especially true when moving from one format to another, such as from a mortise lock to tubular hardware or from separate bored openings to an interconnected entry set.

For buyers trying to avoid returns and jobsite delays, this is the value of measuring first and matching the hardware to the door prep, not the other way around.

A simple measurement process that works

If you want the cleanest path, measure the cross bore diameter, measure the backset from the door edge to the center of that bore, measure the edge bore, and confirm the door thickness. Those four numbers answer most fitment questions for standard residential locksets and deadbolts.

If one of those dimensions falls outside the common range, stop and verify the product specifications before ordering. That extra minute is usually what prevents a door hardware project from turning into a return.

At RightSet Hardware, we see this constantly: buyers are usually not far off, they just need one accurate set of measurements to get to the right fit with confidence. Take the time to measure the actual prep, and the rest of the selection process gets much easier.
