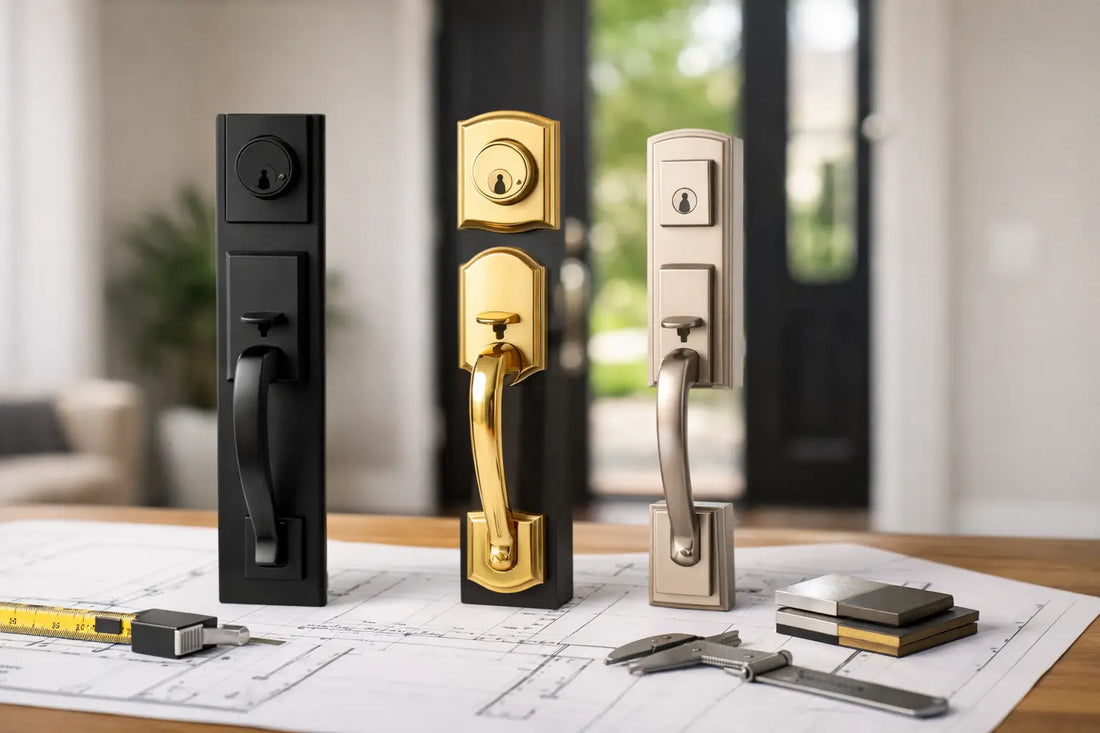

Front Door Handleset Size Guide
A front door handleset can look perfect online and still be wrong for your door. The issue is usually not style - it is size, door prep, or a measurement detail that gets missed. This front door handleset size guide is built to help you check the dimensions that matter before you order, so you can avoid returns, re-drilling, and hardware that never feels quite right.
Most handleset fit problems come down to five things: bore hole size, center-to-center spacing, backset, door thickness, and the relationship between the exterior grip and your existing door prep. Some sets are very forgiving. Others are brand-specific or design-specific, especially when you are replacing an existing handleset and trying to use the same holes.
What this front door handleset size guide covers
If you are replacing a standard lockset with a handleset, the first question is whether your door is already prepped for one. A typical front entry door may have two cross bores - one for the deadbolt and one for the lower handle or latch. In many modern handlesets, the lower section is decorative on the exterior and works with a thumb latch, while the actual locking function is handled by the deadbolt above.
That means a handleset is not sized by overall height alone. The critical dimensions are the bore hole sizes and the spacing between them. A long escutcheon or sectional trim can cover more or less of the door face depending on the model, but it cannot fix the wrong prep.
Start with the door prep, not the product photo
Before comparing styles, measure the holes in the door you already have. On most residential exterior doors, the standard cross bore is 2-1/8 inches. That is the large round hole drilled through the face of the door for the deadbolt and lower latch or lock body.
The edge bore, where the latch or bolt installs into the edge of the door, is usually 1 inch. The bore itself is fairly standard, but the spacing and trim coverage can vary quite a bit from one handleset to another. This is why two products that look similar may not be interchangeable.
If your door is not yet drilled, sizing is easier in one sense because you are not trying to match previous holes. But you still need to confirm the product's required prep and whether your installer will drill for a tubular latch, mortise lock, or interconnected lock body if applicable.
Standard bore hole size
For most residential handlesets, expect a 2-1/8 inch bore hole for the deadbolt and a 2-1/8 inch lower bore if the design uses one. Some sectional handlesets pair a separate deadbolt above with a lower grip and latch assembly below. Others combine trim styles differently, so the lower prep can vary by brand.
If you are replacing an older ornate set, do not assume the lower portion uses today's common prep. Older doors sometimes have non-standard spacing or oversized trim that concealed extra holes.
Center-to-center spacing
This is one of the most important dimensions in any front door handleset size guide. Center-to-center spacing is the measurement from the center of the deadbolt bore to the center of the lower bore. Common residential handleset spacing often falls around 5-1/2 inches, but that is not universal.
Some brands offer adjustable or flexible mounting to work with a range of preps. Others require a fixed spacing. If your current holes are 5-1/2 inches on center and the new handleset requires a different spacing, you may be looking at patching and drilling rather than a direct replacement.
Backset matters more than many buyers expect
Backset is the distance from the edge of the door to the center of the bore hole. The two common residential backsets are 2-3/8 inches and 2-3/4 inches. Many tubular latches are adjustable to fit either one, but not every handleset is.
Why does this matter? Because the grip position, interior trim alignment, and latch engagement all depend on the hardware sitting where it was designed to sit. A mismatched backset can create operational issues or simply make the trim look off-center on the stile.
When measuring, start at the door edge and measure to the center of the hole, not to the edge of the hole. If your existing latch is adjustable, check where it is currently set rather than assuming standard prep.
Door thickness is a fit issue, not a minor detail
Most standard residential entry hardware is made for doors 1-3/4 inches thick. Some products also fit 1-3/8 inch doors, while others can be adapted for thicker doors with an extension kit or thick door package.
This is where buyers run into trouble on custom homes, older solid wood doors, and decorative fiberglass or iron entry doors. If the door is thicker than standard, the spindle length, mounting posts, tailpiece, and thumbpiece connection may not reach correctly without the proper kit.
Measure door thickness at the edge, and do not round casually. A door that is 2-1/4 inches thick may need a specific configuration. If you are ordering premium hardware finishes or keyed products, it is worth verifying this before purchase so the set arrives ready to install.
Full escutcheon vs sectional handlesets
Handleset sizing also depends on the trim format. A full escutcheon handleset uses one long exterior plate, and sometimes a matching long interior plate. A sectional handleset separates the deadbolt trim from the lower grip trim.
Full escutcheon designs can be useful when you need to cover marks or old footprints from previous hardware. They can also create problems if the new plate length interferes with glass inserts, raised panels, or existing door details.
Sectional sets are often more flexible visually, but they do less to hide prior installation damage. If you are replacing one style with the other, compare not only the bore spacing but also the trim height, screw locations, and coverage area.
Handle projection and grip length
Not every sizing issue is hidden inside the door. Exterior grip length and projection affect both appearance and usability. On a narrow stile door, a larger grip may crowd the panel layout. On a wider entry door, a shorter grip can look undersized.
Projection matters if you have a storm door, sidelights, or limited clearance near a wall return. Most buyers focus on hole spacing and forget to check how far the grip extends from the face of the door. If space is tight, that detail can decide whether the set works comfortably.
Grip drop length can also affect visual proportion. Taller entry doors or oversized doors often look better with a longer exterior pull. Standard-size doors can accommodate either, but the right proportion usually depends on the width of the stile and the scale of the rest of the entry.
Replacement vs new installation
If this is a new installation, your decision is mostly about choosing a handleset that matches the planned prep. If this is a replacement, the goal is usually to match the door as closely as possible and avoid extra work.
For replacement projects, take photos and write down every measurement before shopping. Measure the deadbolt bore, lower bore, center-to-center spacing, backset, door thickness, and the height and width of the old trim footprint. Also note whether the existing set is tubular or mortise. That one distinction changes the conversation quickly.
If your current hardware has a mortise lock body, a standard tubular handleset is not a drop-in replacement. The trim may look similar, but the internal door prep is entirely different.
A practical measuring checklist
Before you choose a handleset, confirm the door has a 2-1/8 inch bore or the required prep for your chosen model, measure center-to-center spacing between upper and lower bores, verify whether the latch backset is 2-3/8 inches or 2-3/4 inches, measure exact door thickness, and check trim coverage against old holes or finish marks.
If the door has glass, decorative molding, a multipoint lock, or unusual stile dimensions, add that to your notes. Those details often matter just as much as the core measurements.
When the standard size still is not the right fit
Sometimes all the measurements look correct and the product still is not the right choice. That usually happens with very thick doors, tall escutcheon plates on decorative entries, narrow stiles on modern doors, or existing prep from a discontinued handleset.
This is where specification-driven shopping matters. Brand drawings, trim dimensions, and compatible door ranges tell you much more than product photos. At RightSet Hardware, that fitment-first approach helps reduce the guesswork, especially for buyers matching premium hardware across a full project.
If you are between two options, the safer choice is usually the one with clearly compatible prep and known trim coverage rather than the one that is just close. Hardware that almost fits tends to become an expensive project.
A good handleset should feel like it was made for the door, not adapted to it. If you take the time to measure first, the style part gets much easier.
