Electronic Keypad Lock Installation: Fit First
A keypad lock can look like a quick upgrade until the new lock will not sit flat against the door, the bolt misses the strike, or the interior assembly conflicts with a narrow stile. Successful electronic keypad lock installation begins before the box is opened. The best results come from matching the lock to the door prep, handing, function, and daily access needs of the people using it.
For a front door, that may mean a keypad deadbolt paired with an existing handleset. For a rental, office, or side entry, it may mean managing codes and choosing a lock that supports the right user capacity. The hardware matters, but fit is what determines whether the project is straightforward or turns into a replacement-door conversation.
Start With the Door, Not the Lock
Most residential electronic deadbolts are designed for standard bored doors, but standard does not mean identical. Measure the door thickness first. A typical exterior door is 1-3/4 inches thick, while many interior doors are 1-3/8 inches. Some locks accommodate both sizes out of the box; others need a thick-door kit or are not suitable for thinner doors.
Next, measure the bore hole. The common cross-bore diameter is 2-1/8 inches, with a 1-inch edge bore for the latch or deadbolt. Older doors, custom wood doors, and certain decorative entry doors may have different preparation. Do not assume a new keypad lock will cover an existing oversized bore or the footprint left by removed hardware.
Backset is equally critical. This is the distance from the door edge to the center of the main bore hole, usually 2-3/8 inches or 2-3/4 inches. Many electronic locks include an adjustable bolt, but confirm that before ordering. A fixed backset will not compensate for a measurement mismatch.
Check these details before selecting a lock:
- Door thickness, including any raised panel or trim that affects mounting
- Cross-bore diameter and edge-bore diameter
- Backset dimension and deadbolt bolt diameter
- Distance between an existing deadbolt and handleset bore
- Door handing and swing direction
- Clearance between the interior lock assembly, nearby trim, and storm door hardware
Choose the Right Keypad Lock Function
An electronic keypad lock is not one product category with one use case. A keypad deadbolt is generally the strongest choice for an exterior entry because the deadbolt provides a dedicated locking bolt. A keypad lever can be practical for a garage entry, mudroom, office, or interior door where passage access is the priority. For a commercial opening, the required function may involve a cylindrical lock, mortise lock, exit device trim, or credential system that must be selected around the building's occupancy and code requirements.
Consider how the door is used. A homeowner may want a simple keypad with a mechanical key override. A property manager may need multiple user codes that can be changed between occupants. A remodeler specifying several openings should consider whether the lock finish, lever style, and keyway need to coordinate with the rest of the hardware package.
Connectivity adds another decision point. Smart keypad locks can offer remote code management, activity history, and integration with other access systems. Those features can be useful, but they also introduce setup, app, and network considerations. A non-connected keypad lock is often the better fit for buyers who want reliable code access without managing wireless settings.
Battery access is worth reviewing before purchase. Most residential keypad locks use standard batteries housed on the interior side of the door. That protects the power source from weather, but the interior cover must remain accessible. If the batteries run low, models with a key override or emergency external power contacts can provide additional reassurance.
Prepare the Opening Before Installation
Read the lock template and installation instructions before drilling anything. Even when the door has existing prep, the template identifies required clearances and confirms the bolt orientation. The word UP on a deadbolt latch is not decorative. Installing the bolt upside down can affect operation and prevent proper retraction.
With the door open, test the existing alignment. Extend the deadbolt slowly and watch where it meets the frame. A bolt that scrapes, binds, or strikes the edge of the strike opening will create problems for an electronic lock as well. Motorized deadbolts work best when the bolt can travel freely with minimal resistance.
If the bolt does not align with the strike, correct the frame condition before mounting the keypad. Minor adjustments may involve tightening hinge screws, repositioning the strike, or deepening the strike opening. A door that has sagged or shifted seasonally may need more substantial adjustment. Do not rely on the lock motor to force a misaligned bolt into place. That can shorten battery life and strain the mechanism.
For new door prep, use the manufacturer template, a sharp hole saw, and a drill guide where possible. Finish holes from both sides of the door to reduce splintering. On painted or finished doors, protect the surface while working and confirm the final placement before committing to the cross-bore.
Electronic Keypad Lock Installation Steps
Once the door preparation and strike alignment are confirmed, installation is usually a controlled sequence rather than a difficult project.
First, install the deadbolt latch or latchbolt into the door edge with the beveled or marked side oriented correctly. Secure it with the supplied screws, but avoid overtightening to the point of distorting the latch plate.

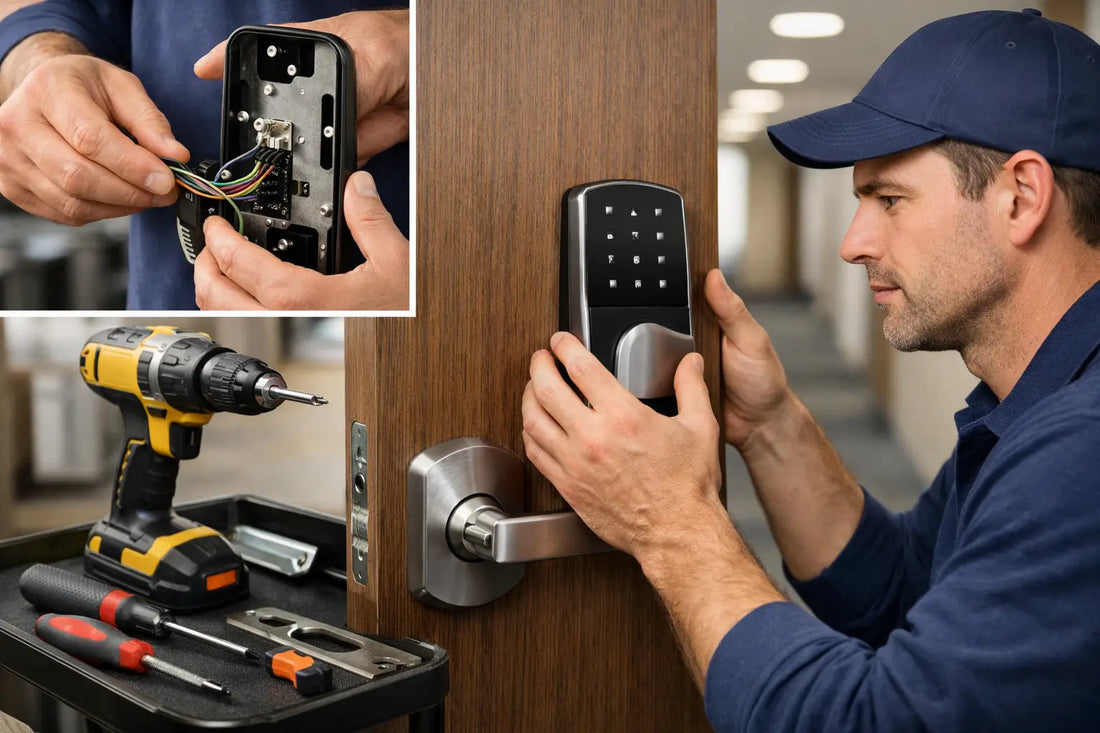

Then place the exterior keypad assembly through the bore. Keep its cable straight and protected. Pinching, sharply bending, or routing the cable across moving parts can lead to intermittent operation that is hard to diagnose later. The exterior assembly should sit squarely against the door without being forced into place.
Mount the interior plate or support bracket next, threading the cable through the designated opening. Tighten mounting screws evenly. Over-tightening can compress the exterior gasket or pull the keypad out of level, particularly on painted wood doors that have small surface variations.
Connect the cable, install the interior lock assembly, and confirm that the thumbturn engages the bolt correctly. Add batteries only after the mechanical components are installed according to the manufacturer sequence. Many locks perform a handing or calibration process at this stage to learn the direction and travel of the bolt.
Before programming codes, test the lock with the door open. Cycle the bolt using the thumbturn and keypad several times. Then close the door and repeat the test, watching and listening for resistance at the strike. Finally, test the mechanical key override if the lock includes one. A key that was never tested is not a dependable backup plan.
Programming and Security Checks That Matter
Set the programming code or administrator code before adding regular user codes. Avoid using obvious combinations such as the house number, birthday, or repeating digits. If a contractor, cleaner, or guest needs access, assign a separate code rather than sharing the primary code. This makes it easier to remove access later without reprogramming every user.
Keep at least one tested mechanical key in an accessible, secure location if the lock has key override capability. Do not store the only backup key inside the home. For connected locks, change default account credentials, apply available firmware updates, and confirm that remote access works before relying on it away from the property.
Electronic locks also benefit from basic seasonal care. Check battery status before cold weather, inspect the strike after major door movement, and avoid harsh cleaners on the keypad finish. If a lock begins to hesitate, investigate alignment and battery condition early rather than waiting for a full failure.
When Professional Help Is the Better Choice
A standard replacement on a properly prepared residential door is often manageable for an experienced DIYer. The project becomes less predictable when the door has unusual prep, an integrated handleset, multipoint locking hardware, glass close to the bore location, or a commercial fire-rated opening.
Commercial doors can involve life-safety requirements, fire ratings, accessibility considerations, and access-control compatibility. A keypad device that appears to fit physically may not be appropriate for the opening's required function. In those cases, verify the full door and hardware specification before changing the lock.
If you are unsure about backset, bore spacing, door thickness, or which lock function fits the opening, measure first and select second. RightSet Hardware can help buyers work through those fitment details before hardware is ordered. A few accurate measurements can protect the finish, function, and security of the entire door.
