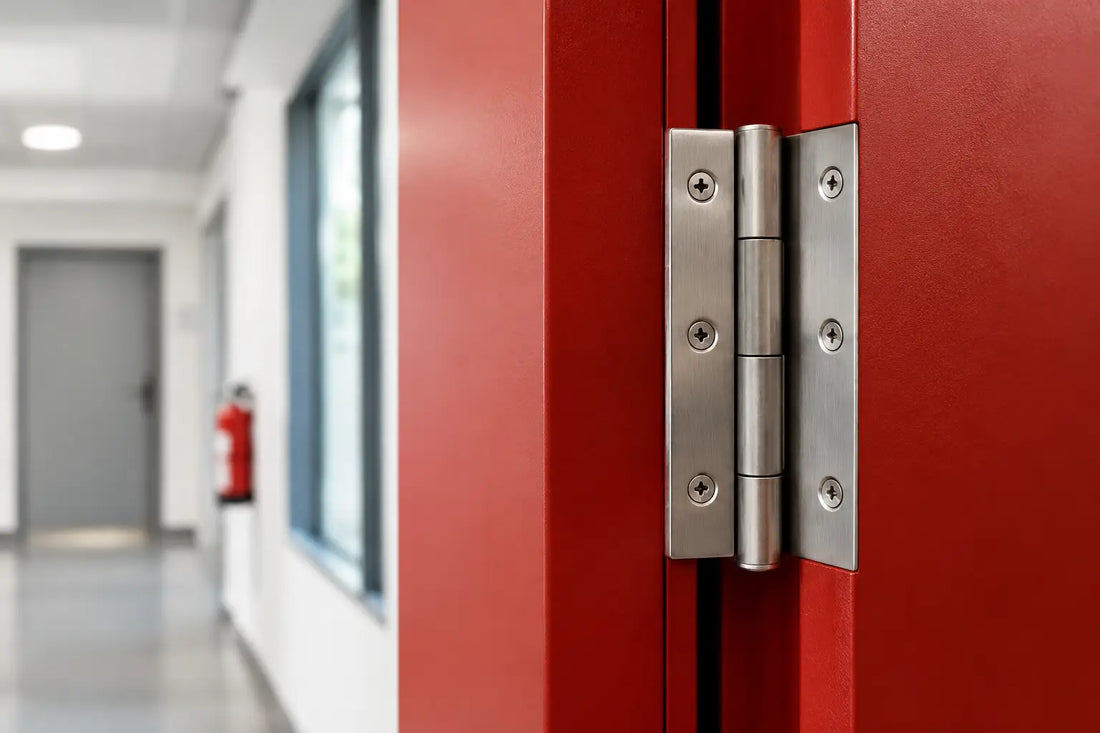

Choosing Fire Rated Door Hinges Correctly
A labeled fire door can lose its intended protection if the hinges are replaced with ordinary hardware. Fire rated door hinges are not simply heavy-duty hinges with a different name. They are listed components selected to work with a specific fire door and frame assembly, helping the opening remain closed and perform as designed during a fire.
For a homeowner, contractor, or facility manager, the challenge is usually not finding a hinge that looks similar. It is confirming the replacement matches the door's listing, size, handing requirements, frame prep, and operating demands. Getting those details right avoids a costly reorder and helps preserve the door assembly's code-conscious configuration.
What Makes Fire Rated Door Hinges Different?
A fire door is a tested assembly, not a collection of unrelated parts. The door leaf, frame, hinges, latch, closer, gasketing, glass, and hardware preparation may all affect its performance. Fire rated hinges are tested or listed for use on fire door assemblies and are generally identified through a recognized listing mark or documentation from the manufacturer.
The hinge must support the door through normal use while remaining functional under elevated heat. Most commercial fire door applications call for steel ball bearing hinges because they carry substantial weight, reduce wear, and operate reliably on frequently used openings. Plain bearing hinges may be appropriate for lighter or lower-use doors when permitted by the door and hinge manufacturer's requirements, but they are not an automatic substitute.
A hinge's fire rating is also not a shortcut around the rest of the opening. A properly listed hinge cannot make an unlabeled door into a fire door. Likewise, a listed door may no longer comply with its original listing if incompatible hinges, fasteners, or field modifications are used.
Start With the Door Label and Opening Requirements
Before selecting replacement hinges, inspect the door and frame for labels. A fire door label typically identifies the manufacturer, rating, and other information tied to the assembly. The opening may be rated for 20, 45, 60, 90, or 180 minutes, depending on the building location and applicable requirements.
Use that information as the starting point, then verify the hinge manufacturer's listing and recommendations for that door rating. Requirements can vary by door construction, door size, hinge material, and whether the opening is interior, exterior, smoke-rated, or subject to unusually high traffic. When the opening is part of a commercial project, a multifamily corridor, stair enclosure, or rated separation, the authority having jurisdiction and the project specifications take priority.
Do not assume that a hinge is suitable because it is labeled "commercial grade" or because it is the same finish as the existing hardware. A durable residential hinge and a listed fire door hinge can look nearly identical from a distance while having very different approvals and performance capabilities.
Confirm the Existing Hinge Dimensions
Replacement work is easiest when the new hinge matches the existing door and frame preparation. Measure the hinge leaf height and width when open, then check the corner style. Commercial doors commonly use square-corner hinges, while many residential doors use a 5/8-inch radius corner. A mismatch can leave gaps, require unauthorized cutting, or prevent the hinge from seating correctly.
Also verify the gauge, screw-hole pattern, and number of holes. A 4 1/2-inch by 4 1/2-inch hinge is common on commercial doors, but it is not universal. Larger, heavier, or taller doors may require 5-inch hinges, heavyweight hinges, or more hinges. Match the existing template only after confirming it is appropriate for the door's current requirements.
Door thickness matters as well. A standard 1 3/4-inch commercial fire door often uses a different hinge configuration than a thicker wood door or specialty opening. If the door is unusually thick, tall, heavy, or clad, verify the hinge projection and load capacity rather than relying on a standard-size replacement.
Selecting Fire Rated Door Hinges for the Door Weight
Hinge size is not determined by fire rating alone. The hinge must also carry the door without sagging, binding, or pulling screws loose. Door material, width, height, thickness, and attached hardware all contribute to the load. A hollow metal door with panic hardware, a closer, kick plates, and frequent daily use may need a significantly different hinge selection than a small rated utility-room door.
Ball bearing hinges are a practical choice for high-use doors because the bearings reduce friction at the knuckle. They help the door swing smoothly and can limit long-term wear, particularly where closers cycle the door repeatedly. Their higher cost is usually justified on entrances, corridors, offices, multifamily common areas, and other active openings.
Continuous hinges, sometimes called piano hinges, are another option for certain heavy or high-abuse doors. They distribute weight along the full height of the door and can improve alignment. However, they must be specifically listed and sized for the opening. A continuous hinge is not interchangeable with three standard butt hinges unless the door, frame, and project requirements allow it.
For standard butt hinge installations, the number of hinges matters. Many typical doors use three hinges, but taller or heavier doors may require four or more. Follow the door manufacturer's instructions, hinge manufacturer's load guidance, and applicable code requirements. Adding a hinge may sound harmless, but changes to a labeled door should be evaluated before drilling new mortises or holes.
Security, Pins, and Finish Considerations
Outswinging exterior doors and some secured openings may require non-removable pin hinges. The set screw or locking feature prevents an exposed hinge pin from being removed when the door is closed. This is a security feature, not a fire rating by itself, so the selected non-removable pin hinge still needs the proper listing for the fire door assembly.
Finish can be important for both appearance and corrosion resistance. Satin stainless, oil-rubbed bronze, polished brass, matte black, and plated finishes can help coordinate hinges with levers, closers, and door accessories. On a fire door, finish should be selected after the functional requirements are met. Confirm that the exact finished hinge, not just a similar base model, is available with the needed listing.
For exterior or humid environments, corrosion resistance deserves extra attention. Stainless steel may be a better long-term choice than plated steel in coastal, wet, or institutional settings. Still, material selection should account for the door, frame, fasteners, and environment as a whole. Mixing metals without considering corrosion can create problems over time.
Installation Details That Protect the Assembly
Even the correct hinge can be compromised by poor installation. Use the screw type and quantity specified for the hinge and door assembly. Missing screws, short screws, stripped holes, or substitutions can affect alignment and may affect the opening's listed condition. On wood doors, verify that screws engage solid material as intended. On hollow metal doors and frames, use the proper machine screws and reinforcement.
Avoid field modifications unless they are specifically allowed by the door manufacturer and applicable fire door standards. Enlarging hinge mortises, moving hinge locations, drilling new holes, or grinding the edge of a door can damage the label or alter the assembly. When an existing hinge prep is damaged, a qualified door professional can help determine whether repair is permitted and what method is acceptable.
After installation, test the door. It should swing freely, self-close when equipped with a closer, latch positively, and avoid rubbing the frame or floor. A fire door that does not fully close and latch may not perform as intended, regardless of how well the hinges appear to fit.
A Practical Ordering Checklist
Before ordering, gather the door rating from the label, door thickness, hinge height and open width, corner style, screw-hole pattern, hinge quantity, finish, bearing type, and any security requirement such as a non-removable pin. For commercial openings, also note the door material, width, height, closer use, and expected traffic level.
If any detail is unclear, photos of the existing hinge, the door edge, the frame prep, and the label can make verification much easier. RightSet Hardware can help narrow the options, but the final selection should always align with the door manufacturer's listing and the requirements for the specific opening.
The right hinge is rarely the most noticeable part of a door, which is exactly the point. When it is correctly matched, the door stays aligned, closes reliably, and continues to support the safety function the opening was built to provide.
