Best Hinges for Heavy Doors That Hold Up

A heavy door rarely gives a subtle warning before hinge problems become obvious. It starts with a latch that misses the strike, a scrape at the threshold, or a door that needs a shoulder to close. Choosing the best hinges for heavy doors is not simply a matter of buying a larger hinge. The correct choice depends on the door's actual weight, height, construction, frequency of use, and the condition of the frame supporting it.

A quality hinge should keep the door aligned, operate quietly, and distribute load without working screws loose over time. For an entry door, a tall solid-core interior door, or a commercial opening, hinge selection is part of the door system, not an afterthought.

Best Hinges for Heavy Doors Begin With Door Weight

Door weight is the starting point, but it should not be the only specification considered. A hollow-core interior door may weigh 25 to 40 pounds, while a solid wood, metal-clad, or fire-rated door can easily exceed 100 pounds. Oversized doors, glass-panel doors, and acoustical doors may be considerably heavier.

Measure the door height, width, and thickness, then confirm its material and estimated weight with the manufacturer when possible. A 36-inch-wide, 1-3/4-inch-thick solid wood exterior door places far more stress on hinges than a standard bedroom door, even when both use three hinges. The taller and wider the slab, the more leverage it applies to the top hinge.

Also account for hardware. A large handleset, multipoint lock, door closer, panic device, or decorative pulls add weight and can affect how the door moves. When the final weight is uncertain, selecting a hinge with additional capacity is usually the safer decision, provided it matches the door and frame preparation.

Choose the Hinge Type for the Opening

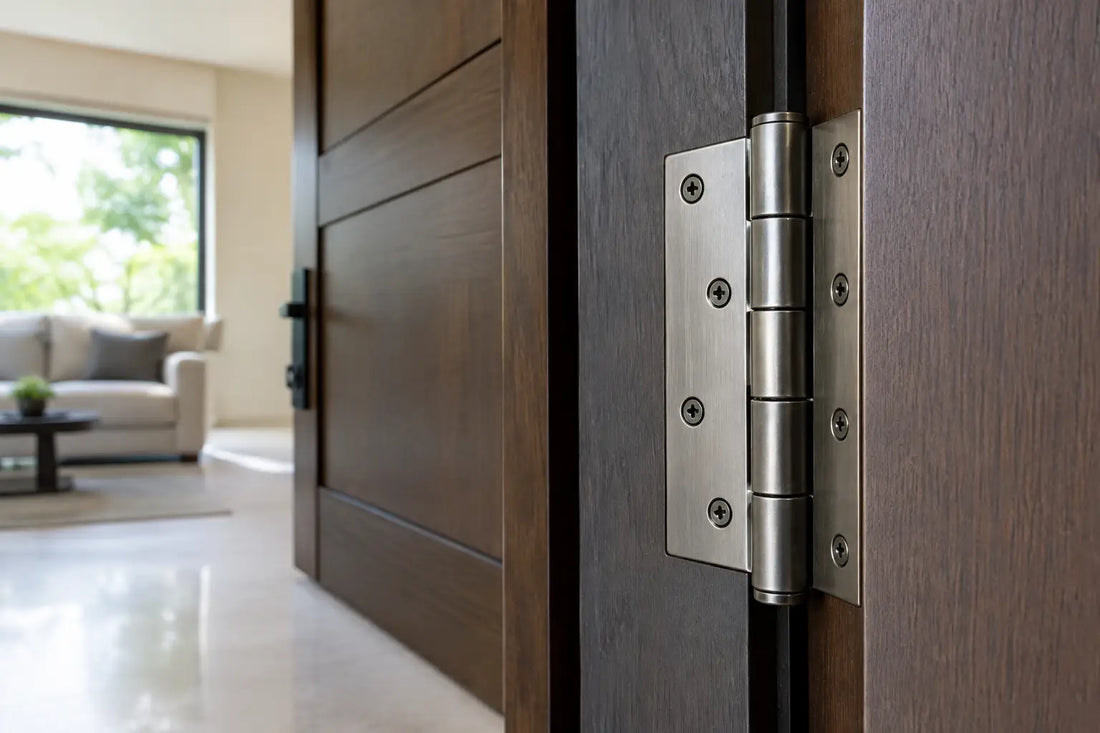

Ball bearing hinges for frequent use

Ball bearing hinges are a dependable choice for many heavy residential and commercial doors. Bearings reduce metal-on-metal friction at the knuckles, allowing a substantial door to swing more smoothly under regular use. They are especially appropriate for exterior entry doors, solid-core doors, and high-traffic interior openings.

A standard plain-bearing butt hinge may work well on a light door, but it can wear faster when asked to carry a heavy slab that is opened repeatedly. Ball bearing construction costs more, yet it often delivers better long-term alignment and quieter operation.

Heavy-duty butt hinges for traditional door prep

For doors with conventional mortised hinge pockets in both the door edge and jamb, heavy-duty butt hinges are often the most straightforward fit. Look beyond the label. Hinge height, leaf thickness, pin diameter, bearing construction, and the manufacturer's weight rating all affect capacity.

A larger hinge is not automatically compatible. If a door and frame are prepped for 4-inch hinges, moving to a 4-1/2-inch hinge may require new mortises or leave exposed finish marks. Match the existing hinge size when replacing hardware unless the door is being refinished or professionally modified.

Continuous hinges for long, demanding doors

A continuous hinge, sometimes called a piano hinge, runs nearly the full height of the door. Because it spreads the load across the entire opening, it is an excellent option for tall, heavy, or high-cycle doors. It can also help stabilize doors that tend to rack or sag between conventional hinge locations.

Geared continuous hinges are common on commercial openings because they are designed for frequent operation and controlled movement. They require precise sizing and installation, so they are typically best specified for new work, replacement projects with matching prep, or doors receiving professional service.

Pivot hinges for oversized or architectural doors

Pivot hinges transfer much of the door load to the floor and header rather than concentrating it at the jamb edge. They are well suited to exceptionally large wood, glass, or statement entry doors where conventional hinges would be visible or heavily loaded.

The trade-off is installation complexity. Pivots require correct floor and header preparation, and their position changes the door's swing geometry. They are not a quick substitute for a failing butt hinge on an existing door.

Size, Gauge, and Hinge Count Matter

For a typical 1-3/4-inch residential exterior door, 4-inch or 4-1/2-inch hinges are common, with 4-1/2-inch ball bearing hinges frequently used for heavier applications. However, dimensions alone do not establish suitability. A thin, light-gauge hinge of the same size may not perform like a heavier architectural-grade hinge.

Hinge gauge refers to the thickness of the hinge leaves. Heavier-gauge material resists flexing and is generally preferable for substantial doors. Stainless steel is a practical choice where moisture exposure is a concern, while solid brass and bronze may be chosen for premium appearance and corrosion resistance. Steel hinges remain common, but the finish and environment should guide the final material choice.

Hinge count also changes load distribution. Three hinges may be adequate for a standard-height door within the hinge manufacturer's published capacity. Taller, heavier, or heavily used doors commonly benefit from four hinges. Very tall doors may require additional hinges or a continuous-hinge solution.

Adding a fourth hinge can reduce stress, but it is not a cure for an undersized hinge, weak jamb, or loose frame. The top hinge still carries significant load, particularly when the door is left open. Proper capacity comes from the whole hinge arrangement, not just the number of leaves installed.

Check the Door and Frame Before Ordering

Even the right hinge will not correct structural problems in the opening. Before replacing hinges, inspect the existing setup closely. Look for loose screws, stripped wood, cracked jamb material, hinge leaves that are bent, or a frame that has shifted out of plumb.

Screw selection deserves special attention on heavy exterior doors. The top hinge should be anchored securely into solid framing where the hinge design and installation method allow. Long structural screws are sometimes used to reach framing, but the screw type, head style, and placement must suit the hinge and jamb. A screw head that sits proud of the leaf can keep the hinge from closing correctly.

Confirm the hinge handing and configuration as well. Most standard butt hinges are non-handed, but specialty hinges, spring hinges, and certain pivot systems may have handing requirements. Measure the hinge height and width, leaf corner style, hole pattern, and whether the door uses square or radius corners. Small prep differences can turn a simple replacement into a repair project.

Do Not Overlook Fire Ratings and Commercial Requirements

Fire-rated openings need compatible, labeled hardware. If the door has a fire label, replacement hinges must carry the appropriate listing for that opening. Do not assume that a decorative residential hinge is suitable simply because it physically fits.

Commercial openings may also have requirements related to accessibility, door closers, exit hardware, security, or high-cycle use. A closer adds closing force and repeated stress, which makes bearing hinges or continuous hinges a more likely fit. For facilities, hinge selection should be coordinated with the complete opening and any applicable building or fire code requirements.

Finish and Appearance Still Count

Heavy-duty hardware does not have to look industrial. Ball bearing and architectural hinges are available in finishes that coordinate with handlesets, levers, deadbolts, and other trim. The key is to select performance first, then choose the finish that completes the hardware package.

Keep in mind that exposed hinges are visible from one side of a closed door. Finish consistency matters most on front entries and interior doors where the hinge barrel is part of the visual line. For exterior coastal or humid environments, corrosion resistance may be more valuable than an exact finish match.

A Better Way to Specify Heavy Door Hinges

The most reliable purchase decision starts with a complete description of the opening: door material, dimensions, thickness, approximate weight, current hinge size, number of hinges, location, and how often the door is used. Add photos or measurements of the hinge mortise when replacing an existing hinge. This information makes it far easier to identify a compatible option before hardware arrives.

RightSet Hardware can help buyers work through fitment details when a door is unusually heavy, tall, thick, or part of a commercial opening. The goal is not to install the strongest-looking hinge. It is to specify a hinge system that supports the door correctly for years of normal use.

If a door is already sagging, start by finding the cause before ordering replacements. A properly sized, well-installed bearing hinge can make a dramatic difference, but a compromised jamb or out-of-square frame needs attention first. Get the opening right, and the hinge choice becomes much clearer.
